MAG520-4K Linux Set Top Box

• Width/depth/height, (mm)
  120x78x21
• Weight, g
  110

• Operating system
  Linux 4.9
• DRM option
  Upon request
• Middleware supported
  Pre-integrated Ministra TV platform. Image enhancement with operator apps, customization, or a full replacement is available

• Chipset
  Amlogic S905X2
• Processor
  Quad-core ARM Cortex-A53, 1,900 MHz
• Performance
  18,400 DMIPS
• RAM
  1 GB DDR3
• Flash memory
  4 GB eMMC

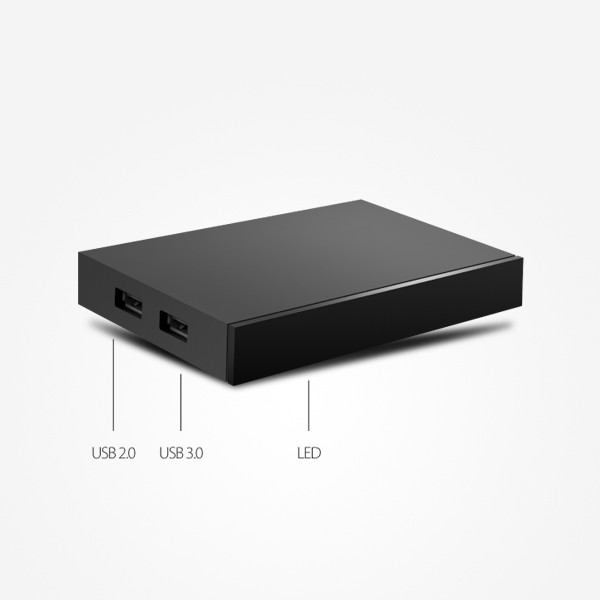

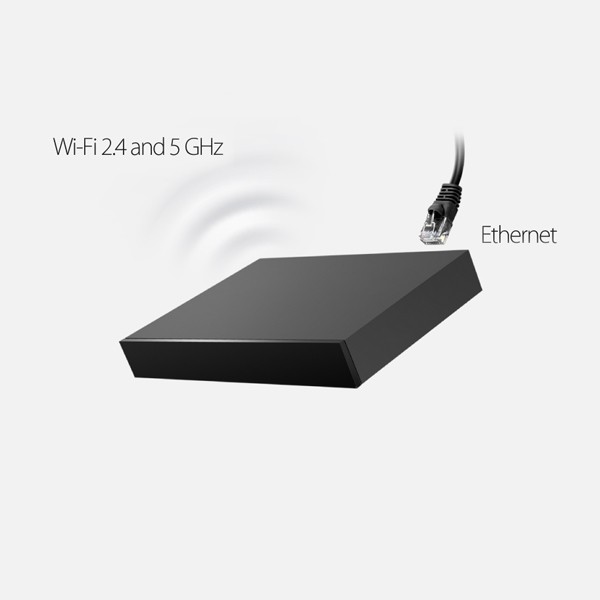

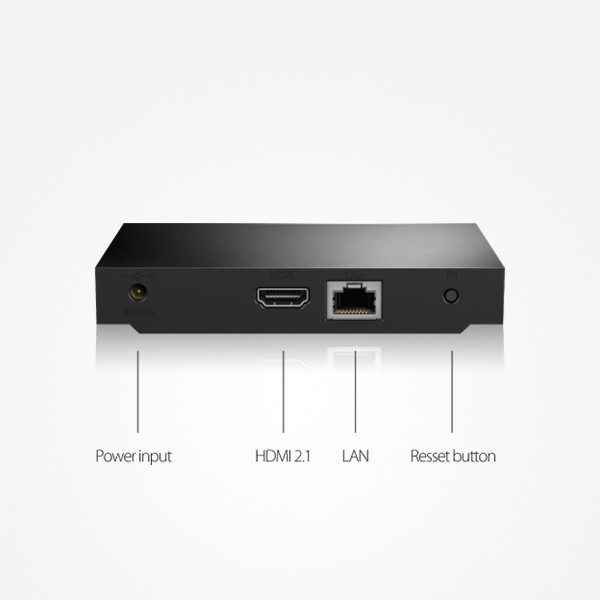

HDMI 2.1, Ethernet 100 Mbps, 1 × USB 3.0, 1 × USB 2.0, built-in 2T2R ac Wi-Fi module

PC or NAS, multimedia broadcasts (RTSP, RTP, UDP, IGMP, HTTP), USB devices

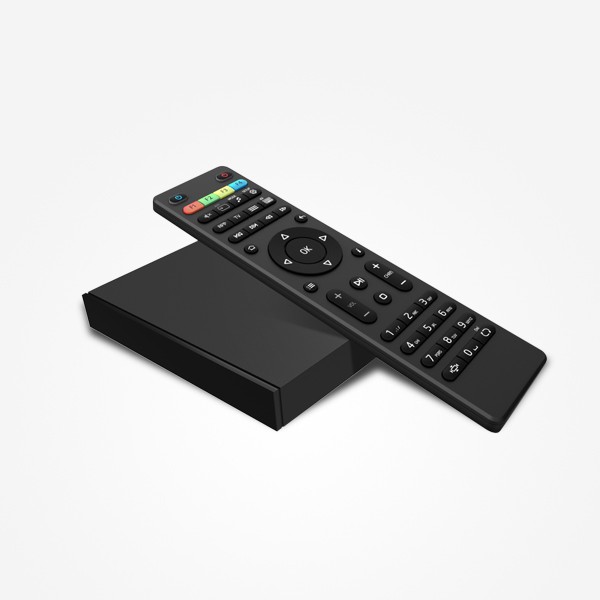

A MAG520w3 set-top box, a user manual, an HDMI cable, a 5V 2A power adapter, a remote control, two AAA batteries, and packaging

• Audio сodecs
  MPEG L1/L2/L3l, AAC-LC, HE AAC V1/V2, APE, FLAC, Dolby Digital Plus™

• Audio formats
  AC3, ACC, APE, FLAC, M4A, MP3, OGG, WAV

• Video modes
  PAL, NTSC, 576p, 720p, 1080p, 1080i, 2160p (4K)
• Video сodecs
  MPEG1/2 MP@HL, MPEG4 part 2 (ASP), H.265 Main/Main 10@L5.1 High 2160p@60 fps (optional), H.264 AVC High@L5.1 2160p@30 fps, XviD, 3D video support
• Video containers
  TS, AVI, MPEG, MP4, MOV, MKV, M2TS, VOB
• Image formats
  JPEG, PNG, BMP, RAW
• Subtitles
  DVB, PGS, SRT, SSA/ASS, SUB, Teletext subs, WebVTT, closed captions
• Playlist formats
  M3U, M3U8, PLS, CUE
